Dekuma’s RV Series vertical injection molding machines are widely used in the automotive industry, power industry, civil industry and other fields.
These vertical rubber injection molding machines offer
This vertical molding machine is a major progress of our technology. The following are some merits you should know about our vertical injection molding machine:
Our RV series vertical molding machines’ optimized plasticization and injection systems accommodate a wide range of materials, including those with exceptionally high hardness. The advanced screw design ensures consistent performance across various applications.
The specially designed injection system allows for quick disassembly of the accumulator, facilitating easy seal replacements and material removal. This design minimizes downtime and enhances operational efficiency.
As a vertical molding machine manufacturer committed to German industrial standards, we use high-quality double-layer thermal insulation plates that withstand high pressure and temperature, reducing energy consumption by up to 40% for greater efficiency and long-term reliability.
The dual-seal clamping cylinder design effectively prevents oil leakage, maintaining a clean and safe working environment while reducing maintenance requirements.
This vertical rubber injection molding machine features a stable and reliable hydraulic system, powered by an American high-pressure pump and German-engineered hydraulic valves.
The injection and clamping strokes are controlled by a world-renowned electronic ruler with 0.05% accuracy, helping reduce cycle time without compromising quality.

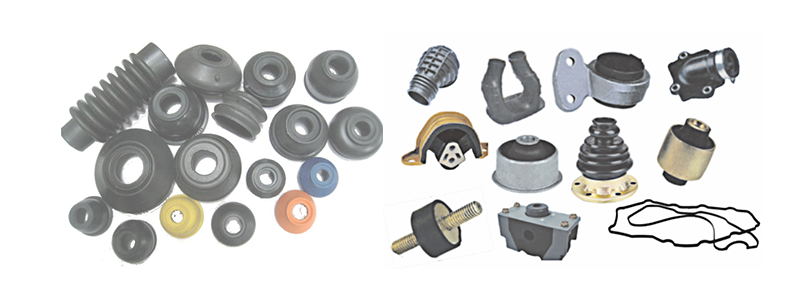

Dekuma, a proven vertical molding machine manufacturer, produces the DKM-RV series. These machines are widely used in the automotive, electric power, and civil engineering industries for manufacturing rubber vibration dampers, cylinder cushions, sealing components, cable connectors, and pipe fittings.
Our vertical molding machines are compatible with a wide range of materials, including Natural Rubber(NR). Nitrile Butadiene Rubber(NBR), Ethylene Propylene Diene Monomer(EPDM), Isobutylene Isoprene Rubber, etc.
Technical specifications for the RV Series vertical rubber injection molding machine are as follows:
| ITEM | Unit | DKM-RV50 | DKM-RV100 | DKM-RV200 | DKM-RV300 | DKM-RV400 | DKM-RV500 | DKM-RV1000 | DKM-RV1600 |
| Injection Pressure | bar | 2500 | 2500 | 1750 | 1750 | 1750 | 1750 | 1750 | 2000 |
| Injection Volume | cc | 180 | 180 | 2000 | 3000 | 4000 | 5000 | 6000 | 100000 |
| Clamping Force | kN | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 10000 | 16000 |
| Mould Opening Stroke | mm | 300 | 300 | 480 | 570 | 600 | 760 | 700 | 700 |
| Distance Between Heating Plates | mm | 350 | 360 | 550 | 640 | 700 | 860 | 1050 | 850 |
| Min.Mould Thickness | mm | 50 | 60 | 70 | 70 | 100 | 100 | 350 | 150 |
| Heating Plate Dimension | mm | 450*450 | 500*500 | 500*550 | 650*650 | 700*700 | 800*800 | 1300*1300 | 1800*1800 |
| Mould Sliding Stroke | mm | 600 | 650 | 680 | 800 | 1200 | 1800 | ||
| System Pressure | bar | 210 | 210 | 225 | 200 | 210 | 220 | 210 | 220 |
| Machine Weight | Ton | 5 | 6 | 6.5 | 8.5 | 10 | 14.5 | 48 | 95 |
| Machine Dim.(L x W x H) | m | 1.7*1.6*3.1 | 1.9*1.6*3.3 | 3.7*2.2*3.7 | 3.9*2.4*4.1 | 3.7*2.45*4.9 | 3.7*3*5.16 | 4.9*4.1*5.9 | 6.9*4*9.3 |
| Hydraulic Pump Motor Power | kW | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 30 | 75 |
| Heating Plate Power | kW | 8 | 12 | 14 | 16 | 20 | 20 | 80 | 120 |
| Total Power | kW | 19 | 23 | 29 | 35 | 42 | 42 | 115 | 220 |
We reserve the right to change any design and specification without notice.
As a leading hydraulic injection molding machines manufacturer, we proudly introduce the RV-Se Series—a high-performance solution powered by a precision servo system.
Designed for demanding applications in the automotive industry, these machines are engineered to process TPV, TPE, flexible modified PVC, and other raw materials manufactured by injection molding.
Our RV-Se hydraulic rubber molding machines offer clamping forces from 500 to 1,000 tons, making them ideal for large-scale production. Known for reliability and performance, these machines embody our commitment to cutting-edge R&D and strict quality control.
Key features of our hydraulic molding machines include:
These hydraulic rubber machines feature a modular design, offering the flexibility of customization to suit your specific molding requirements.
Suitable for Electronic componments, insulator, arrester, cable accessories, sealings, infant care, food container, kitchen articles and sports industry, etc.
Main features of this LSR injection molding machine include:
Suitable For 9-22 Inch Solid Tyres
Main Features Include:
Contact us for tailored solutions to meet your rubber injection needs and drive your success.
