Ideal for the production of hollow core insulator, long rod insulator, surge arrester, cable accessories, and switch gear.
Main features include:
Dekuma brings 25 years of experience to every build and follows strict German manufacturing standards. That expertise gave rise to the RA Series, our dedicated solution for electrical insulator manufacturing.
Purpose-built for high-voltage composite rubber insulators, this insulator molding machine handles complex shapes, large shot volumes, and demanding material properties with ease. Manufacturers value its proven efficiency, rock-solid stability, and versatile performance, making it the ideal machine for modern insulator production.
Developed with German engineering expertise, this insulator rubber injection molding machine features advanced material processing and injection system. Its enhanced screw design ensures better, more consistent feeding of rubber compounds, while also achieving more uniform mixing (homogenization) and improved air removal (degassing).
These optimizations establish this machine as a highly effective composite rubber insulators injection machine.
Engineered for efficiency, our industrial insulator molding machine utilizes advanced double-layer thermal insulation plates capable of withstanding high pressure and temperatures. This robust design provides exceptional heat containment, directly reducing energy consumption by approximately 40%.
The result is not only significant energy savings but also increased machine reliability due to reduced thermal stress on components.
Our insulator molding machine is equipped with top-tier components, including an American high-pressure pump and renowned German hydraulic valves.
This robust configuration delivers a hydraulic system characterized by outstanding stability and reliability, ensuring consistent operational accuracy, precise control, and dependable service life for silicone rubber high voltage insulators manufacturing.
This insulator manufacturing machine offers intuitive operation and comprehensive process monitoring. This advanced control allows for precise setting, adjustment, and saving of all critical molding parameters, facilitating efficient setup, real-time monitoring, and stringent quality control during the production of insulators.
This insulator molding machine achieves remarkable accuracy by utilizing world-class non-contact linear transducers for closed-loop control of both clamping and injection strokes. With a theoretical precision of 0.05%, this system ensures exact mold positioning, accurate shot size control, and precise switching points.
Contact Our Sales Engineer now to start your business! We support custom requirements for insulator molding machines.

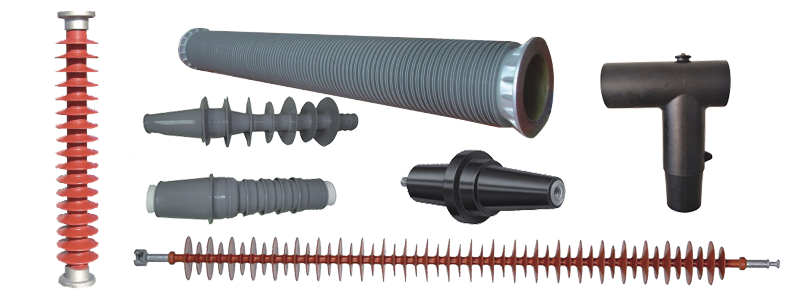

Suitable for Silicone Rubber, Ethylene Propylene Diene Monomer (EPDM) to produce hollow core insulator, long rod insulator, surge arrester, cable accessories, and switch gear.
If you have special needs, visit our Customization or Contact Us directly. Our technical experts will connect with you very soon. We are looking forward to cooperating with you!
| ITEM | Unit | RIMM for Rod Insulator | RIMM for Hollow Insulator | ||||||||
| DKM-RA300 | DKM-RA500 | DKM-RA800 | DKM-RA1000B | DKM-RA1500 | DKM-RA650 | DKM-RA1000 | DKM-RA1600 | DKM-RA1800 | DKM-RA2400 | ||
| Injection Pressure | bar | 1120/1350 | 1200/1480 | 1200 | 1260 | 1420 | 1200 | 1200 | 1200 | 1260 | 1200 |
| Injection Volume | cc | 5000/4000 | 13000/10000 | 18000 | 18000 | 40000 | 18000 | 25000 | 25000*2 | 25000*2 | 50000*2 |
| Clamping Force | kN | 3000 | 5000 | 8000 | 1000 | 15000 | 6500 | 10000 | 16000 | 18000 | 24000 |
| Mould Opening Stroke | mm | 500 | 500 | 500 | 500 | 700 | 700 | 800 | 1000 | 1200 | 1200 |
| Distance Between Heating Plates | mm | 710 | 780 | 650 | 880 | 1050 | 1200 | 1160 | 1500 | 1600 | 2000 |
| Min. Mould Thickness | mm | 210 | 280 | 150 w/CRB | 380 w/CRB | 350 | 500 | 360 | 500 | 400 | 800 |
| Heating Plate Dimension | mm | 600*1000 | 630*1600 | 800*2200 | 800*2600 | 800*3700 | 800*1600 | 1000*1800 | 1000*2600 | 1000*3000 | 1500*3000 |
| System Pressure | bar | 200 | 220 | 210 | 200 | 210 | 210 | 200 | 210 | 210 | 210 |
| Machine Weight | Ton | 10 | 19 | 30 | 36 | 65 | 24 | 45 | 95 | 100 | 160 |
| Machine Dim.(L x W x H) | m | 4.3*1.9*3.3 | 5.65*3*3.8 | 6.5*5.8*3.2 | 6.7*6.1*3.3 | 8.7*8*4 | 5.7*2.8*3.95 | 6.9*5.2*4.5 | 8.1*7.5*5.1 | 8.1*7.5*5.1 | 8.6*9*5.6 |
| Hydraulic Pump Motor Power | kW | 15 | 22 | 30 | 34 | 64 | 31 | 41 | 68 | 68 | 105 |
| Heating Plate Power | kW | 25 | 36 | 100 | 120 | 133 | 60 | 80 | 120 | 120 | 180 |
| Total Power | kW | 45 | 67 | 147 | 168 | 212 | 110 | 150 | 220 | 220 | 320 |
We reserve the right to change any design and specification without notice.
Download DEKUMA rubber injection molding machine brochure (English)
As a leading hydraulic injection molding machines manufacturer, we proudly introduce the RV-Se Series—a high-performance solution powered by a precision servo system.
Designed for demanding applications in the automotive industry, these machines are engineered to process TPV, TPE, flexible modified PVC, and other raw materials manufactured by injection molding.
Our RV-Se hydraulic rubber molding machines offer clamping forces from 500 to 1,000 tons, making them ideal for large-scale production. Known for reliability and performance, these machines embody our commitment to cutting-edge R&D and strict quality control.
Key features of our hydraulic molding machines include:
These hydraulic rubber machines feature a modular design, offering the flexibility of customization to suit your specific molding requirements.
DKM-RC series C-frame rubber injection molding machines are used for precision rubber parts, sealing strip joints, seals, skeleton oil seals, and TPU products.
Main features of this C frame press machine include:
Dekuma's glass encapsulation machine is smarter, more environmentally friendly, and highly stable—especially suitable for large-size car windows with TPV glass edges, ensuring precise injection volume. Key features include:
Backed by proven reliability, Dekuma's RV Series automotive glass encapsulation machines are supplied to Europe, the United States, South Korea, and other regions. Their outstanding performance has been repeatedly validated by industry-leading users worldwide, earning highly recognition.
Suitable for Electronic componments, insulator, arrester, cable accessories, sealings, infant care, food container, kitchen articles and sports industry, etc.
Main features of this LSR injection molding machine include:
Contact us for tailored solutions to meet your rubber injection needs and drive your success.
