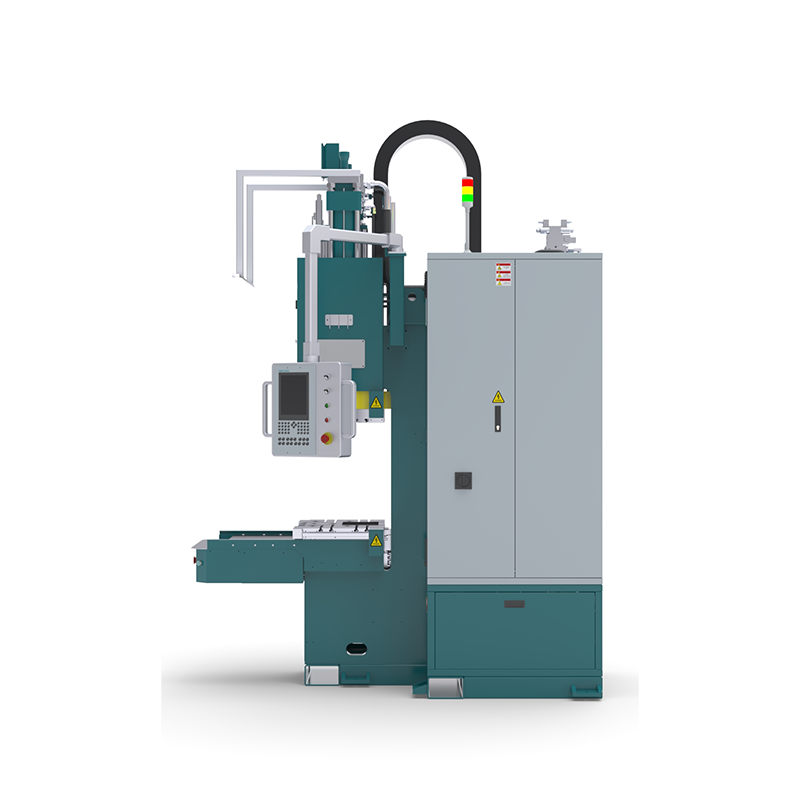

DKM-RC series C-frame rubber injection molding machines are used for precision rubber parts, sealing strip joints, seals, skeleton oil seals, and TPU products.
Main features of this C frame press machine include:
Discover Dekuma rubber injection molding machine (C-frame type):
Separated Injection System
The plasticized part of the injection system is completely separated from the injected part, ensuring improved temperature control and material consistency. This structural design enhances the stability of the rubber sealing making machine and is commonly applied in advanced C-frame rubber injection molding machine solutions.
Precise Injection Control
Precise injection volume is achieved, and the nozzle can be lifted during vulcanization to prevent backflow or material stress. This feature is essential for high-accuracy applications in rubber injection molding machine C-frame type systems, helping to increase the qualified yield rate—especially when producing intricate rubber parts.
3-Side Operation Access
This C frame hydraulic press machine adopts an accessible C-frame structure, which allows for flexible operation from three sides.
Double Workstation (Optional)
The machine can be configured with an optional double workstation. This modular feature is often integrated into high-output C frame hydraulic machine platforms used in large-volume rubber part manufacturing.
Mould Transfer (Optional)
An optional mould transfer function is available, to enable safer and quicker mold changes. This is ideal for manufacturers using C frame press machine setups, as it helps minimize downtime.
Servo Valve Control (Optional)
Optional high-precision servo valve control system ensures stable pressure and flow during injection. Widely used in rubber injection molding machine C-frame type solutions, it enhances precision for industries requiring tight tolerance, e.g., automotive sealing components.

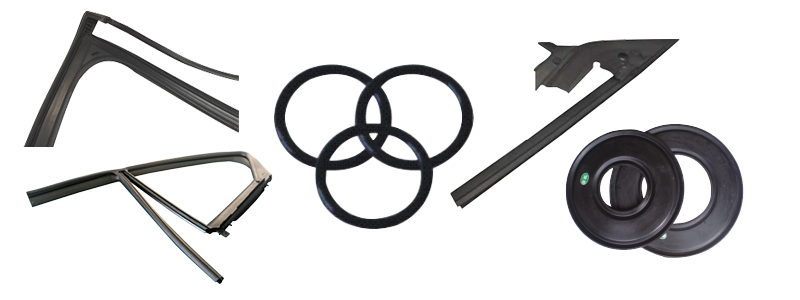

Dekuma C-frame rubber injection molding machines is designed for precise rubber parts, sealing strips, sealing, skeleton oil seal and TPU parts, including:
Technical specifications for the C-frame rubber injection molding machine are as follows:
| ITEM | Unit | DKM-RC15
| DKM-RC25 | DKM-RC25D | DKM-RC40 | DKM-RC60 | DKM-RC80 | DKM-RC120 | DKM-RC250 | ||||||
| Rubber | TPE | Rubber | TPE | Rubber | TPE | Rubber | TPE | Rubber | TPE | Rubber
| Rubber | TPE | TPE | ||
| Injection Pressure | bar | 2500 | 2000/1360 /1000 | 2500 | 2000/1360 /1000 | 2500 | 2000/1360 /1000 | 2500 | 2000/1360 /1000 | 2500 | 2000/1360 /1000 | 2500 | 2500 | 1300 | 1360 |
| Injection Volume | cc | 70/98/ 140/190 /250 | 25/40 /70/125 | 70/98/ 140/190 /250 | 25/40 /70/125 | 70/98/ 140/190 /250 | 25/40 /70/125 | 70/98/ 140/190 /250 | 25/40 /70/125 | 70/98/ 140/190 /250 | 25/40 /70/125 | 140/250/380 | 140/250 /380 /500 | 25/40 /70/125 | 400/546/800 |
| Clamping Force | kN | 150 | 150 | 250 | 250 | 252 | 400 | 400 | 600 | 600 | 800 | 1200 | 2500 | ||
| Mould Opening Stroke | mm | 465 | 465 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 600 | ||
Distance Between Heating Plates | mm | 500 | 500 | 550 | 550 | 550 | 580 | 580 | 590 | 590 | 650 | 820 | 1100 | ||
| Min.Mould Thickness | mm | 35 | 35 | 50 | 50 | 50 | 80 | 80 | 90 | 90 | 160 | 320 | 500 | ||
| Heating Plate Dimension | mm | 350*550 | 450*550 | 400*300 | 500*450 | 500*450 | 700*450 | 700*450 | 500*700 | 700*600 | 910*850 | ||||
| System Pressure | bar | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | ||
| Machine Weight | Ton | 2.2 | 2.2 | 2.5 | 2.5 | 4 | 4 | 4 | 4.5 | 4.5 | 6 | 8 | 31 | ||
| Machine Dim.(L x W x H) | m | 1.5*1.2*3.3 | 1.8*1.3*3.4 | 2.8*2*3.35 | 2.3*1.2*3.4 | 2.3*1.2*3.4 | 2.5*1.3*3.4 | 2.9*1.4*3.7 | 3.5*4*4.5 | ||||||
| Hydraulic Pump Motor Power | kW | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 14.1 | 14.1 | 37.7 | ||
| Heating Plate Power | kW | 7 | – | 7 | – | 10 | – | 9 | – | 10 | – | 7.4 | 19.6 | – | – |
| Total Power | kW | 21 | 20 | 21 | 20 | 23 | 23 | 22 | 24 | 23 | 30 | 33.7 | 52.5 | ||
We reserve the right to change any design and specification without notice.
As a leading hydraulic injection molding machines manufacturer, we proudly introduce the RV-Se Series—a high-performance solution powered by a precision servo system.
Designed for demanding applications in the automotive industry, these machines are engineered to process TPV, TPE, flexible modified PVC, and other raw materials manufactured by injection molding.
Our RV-Se hydraulic rubber molding machines offer clamping forces from 500 to 1,000 tons, making them ideal for large-scale production. Known for reliability and performance, these machines embody our commitment to cutting-edge R&D and strict quality control.
Key features of our hydraulic molding machines include:
These hydraulic rubber machines feature a modular design, offering the flexibility of customization to suit your specific molding requirements.
Suitable for HTV silicone rubber to produce long-rod insulators, hollow core bushings, arresters, cable accessories and switch gear.
Main features of this solid silicone injection molding machine include:
Suitable for general insulators and rubber products.
Suitable for sealing rings and other rubber parts made of natural rubber, nitrile rubber, or fluoro rubber.
Check features of this horizontal molding machine quickly:
