Suitable for general insulators and rubber products.
▪ Cost-effective and functional designwith 3 sides access, suitable for producing long products such as insulators and surge arresters.
▪ Direct feeding by hydraulic cylinder, featuring a simple structure and easy operation.
▪ Clamping cylinderwith dual-seal reduces likelihood of oil leakage.
▪ Equipped with high-precision, long-life German hydraulic valves throughout.
▪ Siemens control systemwith a 5.7” display offers a user-friendly interface.
▪ Optional double station configuration.

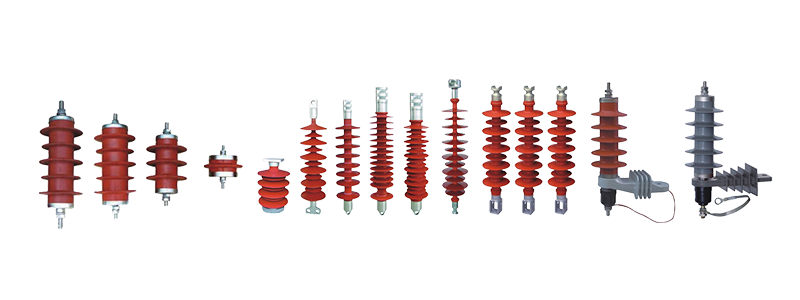

General insulators and rubber products.
| ITEM | Unit | DKM-RI200 | DKM-RI200FD | DKM-RI300 | DKM-RI300FD |
| Injection Pressure | bar | 800 | 800 | 800 | 800 |
| Injection Volume | cc | 2000 | 2000 x 2 | 4000 | 3000 x 2 |
| Clamping Force | kN | 2000 | 2000 | 3000 | 3000 |
| Mould Opening Stroke | mm | 480 | 480 | 350 | 350 |
| Distance Between Heating Plates | mm | 600 | 600 | 850 | 850 |
| Min. Mould Thickness | mm | 120 | 120 | 200 | 200 |
| Clear Distance Between Columns | mm | 590 x 270 | 590 x 270 | 710 x 660 | 710 x 660 |
| Heating Plate Dimension | mm | 500 x 800 | 500 x 800 | 610 x990 | 610 x990 |
| System Pressure | bar | 225 | 225 | 250 | 250 |
| Machine Weight | Ton | 4.8 | 6.5 | 7 | 12 |
| Hydraulic Pump Motor Power | kW | 11 | 11 | 11 | 11 |
| Heating Plate Power | kW | 14 | 28 | 24 | 48 |
| Total Power | kW | 25 | 39 | 35 | 59 |
We reserve the right to change any design and specification without notice.
