Suitable For 9-22 Inch Solid Tyres
Main Features Include:
The solid tire production line contains the following units
Its features and advantages include:
Integrates a rubber injection unit with a multi-station compression molding machine. The combined process improves tire quality and cycle time control, making it a reliable choice for tire making machinery users.
Designed as a high-performance tire making machine, the system has 8 working stations and supports simultaneous production of different tyre sizes (9-22 inches). It’s an ideal solution for companies seeking a flexible tire production line to meet diverse application needs.
Features automatic mold transport, docking, opening, and tyre unloading. Automation ensures stable operation, consistent product dimensions, and reduced labor costs across solid tyre manufacturing.
Optimized for press-on solid rubber tires, also known as cushion tires, this line supports high-volume production with minimal waste. As a trusted tire manufacturing machine provider, Dekuma delivers turnkey solutions for logistics, warehouse, and industrial vehicle sectors.
Compared with traditional tyre manufacturing machines, this system offers better injection consistency, reduced material waste, and higher mold alignment precision–making it the right fit for businesses scaling up solid tyre making machinery capacity.

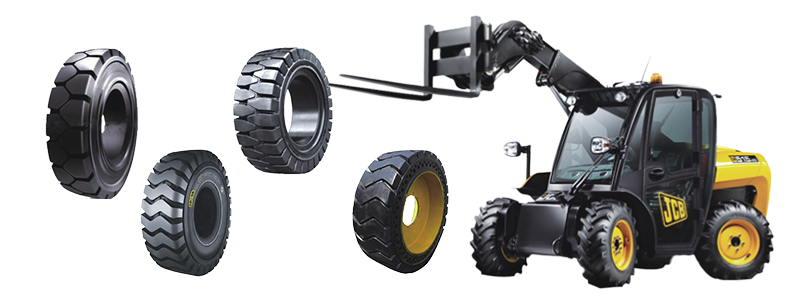

This solid tire production line is ideal for producing forklift press on tires / airless forklift tires commonly used in warehousing, logistics, and material handling. It also supports the manufacturing of airless tires for industrial heavy equipment such as pallet trucks, factory carts, and other heavy machinery tires, making it a reliable choice for tire manufacturing companies.
Forklift tyres | Airport and port ground support equipment tyres |
Heavy-duty transport systems (rail transfer carts, stackers) | Road cleaning and construction machinery tyres |
Automated logistics equipment (AGV, electric tow tractors) | … |
Have specific equipment requirements? We’re here to help you build the right tire production line.
Technical specifications of the solid tire production line are as follows:
| Item | Unit | Parameters |
| Injection Pressure | bar | 1380 |
| Injection Volume | cc | 25000 |
| Screw Diameter | mm | 90 |
| Clamping Force | kN | 6500 |
| Mould Opening Stroke | mm | 600 |
| Distance Between Heating Plates | mm | 600 |
| Heating Plate Dimension | mm | 900 x 820 |
| System Pressure | bar | 210 |
| Machine Weight | Ton | 60 |
| Machine Dim.(L x W x H) | m | 17.9 x 5.5 x 5.8 |
| Hydraulic Pump Motor Power | kW | 37.5 |
| Total Power | kW | 65 |
| Injection Speed | cc/min | 5000 |
| Item | Unit | Parameters |
| Clamping Force | kN | 1000 |
| Mould Opening Stroke | mm | 400 |
| Distance Between Heating Plates | mm | 500 |
| Heating Plate Dimension | mm | 820 x 820 |
| System Pressure | bar | 210 |
| Hydraulic Pump Motor Power | kW | 15 |
| Item | Unit | Parameters |
| Snap Gear Max Diameter | mm | 800 |
| Snap Gear Vertical Stroke | mm | 550 (cylinder length 600) |
| Upper Tyre Mould Oro Rim Diameter | mm | 150~500 |
| Upper Tyre Mould Oro Rim Vertical Stroke | mm | 370 (cylinder length 400) |
| Lower Tyre Mould Oro Rim Diameter | mm | 150~500 |
| Lower Tyre Mould Oro Rim Vertical Stroke | mm | 560 (cylinder length 600) |
| Tyre Trans Mitting Stroke | mm | 800~900 |
We reserve the right to change any design and specification without notice.
| Item | Unit | Parameters |
| Rail Center Distance | mm | 603 |
| Rail Width | mm | 75 |
| Rail Height (From the ground) | mm | 680 |
| Mould Carrier Dimension | kN | 900 x 800 |
| Driving Mode | High Frequency Response Proportional Directional Valve |
From 9 to 22 inches—this solid tyre production line suitable for a wide range of industrial applications.
Yes. We offer on-site installation, operator training, and long-term technical support globally.
